Suspension pivot bolt kit for 2019 Specialized Demo FSR (F1) bikes, including all bolts and spacers required for maintenance.
Suspension pivot bolt kit for 2019 Specialized Demo FSR (F1) bikes, including all bolts and spacers required for maintenance.
Specialized

Specialized Demo FSR F1 Bolt Kit in Black

$159.99
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Specialized Demo FSR F1 Bolt Kit in Black

Season:2024

Brand:Specialized

Code:S190500002

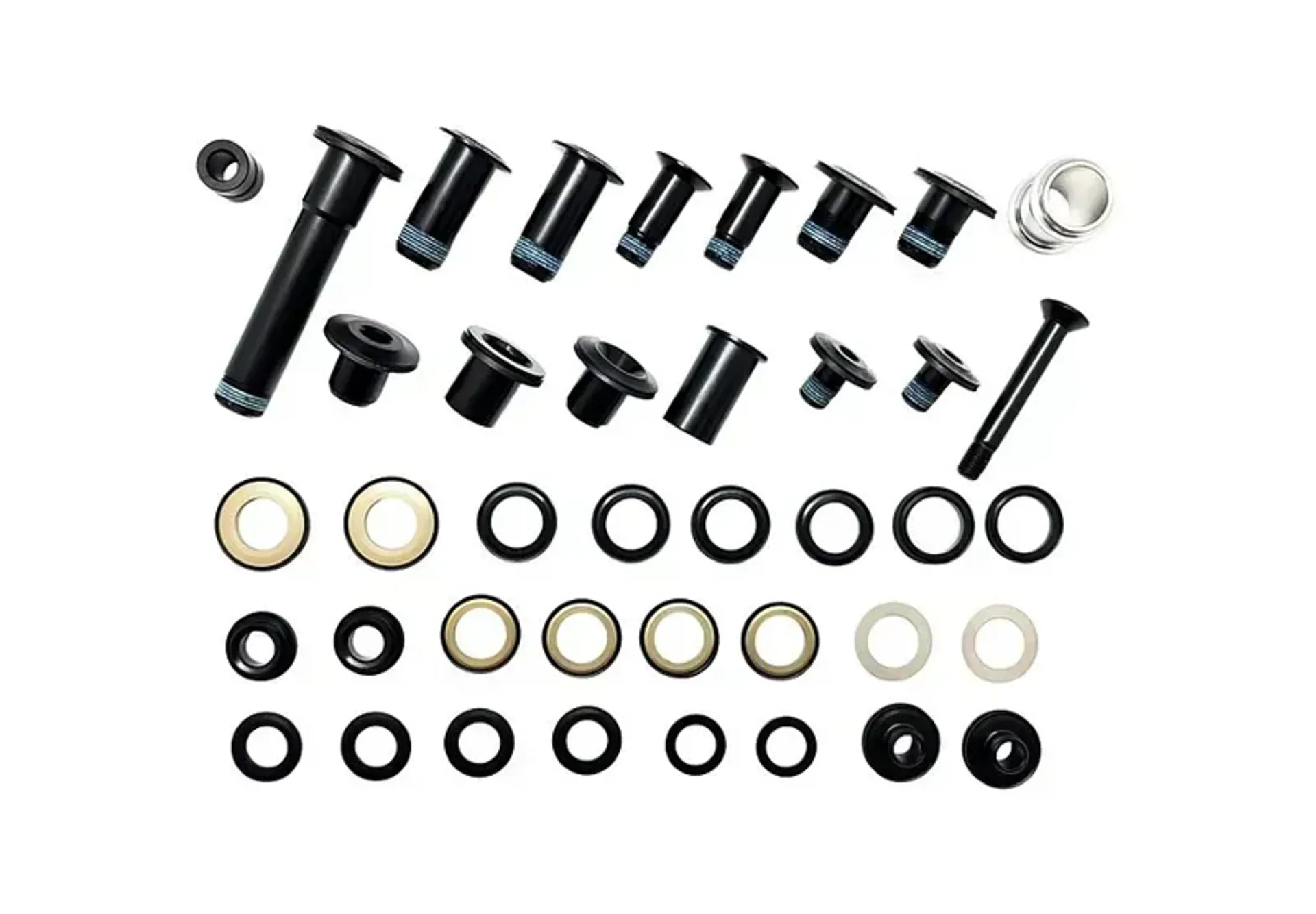

This suspension pivot bolt kit is designed for 2019 Specialized Demo FSR (F1) bikes and includes all necessary bolts and spacers.

This kit also includes all axle and pivot spacers. Refer to the schematic for details.

Parts required for 27.5" conversion on 2019 - 2020 Frames: S200500004 - BLT MY21 DEMO WHEELBASE FLIP CHIP KIT.

Features:

  • Main Pivot Axle: 17/15mm W x 80.3mm L - Steel - Torque: 27.1 Nm (240 in-lbf) - 1 pcs.
  • Upper Link to Seat Tube Pivot Bolt: 15mm W x 21mm L - Alloy - Torque: 22.5 Nm (200 in-lbf) - 2 pcs.
  • Seatstay Horst Link Pivot Bolt: 12mm W x 30mm L - Alloy - Torque 20.3 Nm (180 in-lbf) - 1 pcs.
  • Upper Link to Seatstay Pivot Bolt: 15mm W x 35.7mm L - Alloy - Torque: 22.5 Nm (200 in-lbf) - 2 pcs.
  • Forward Shock Eye Bolt: 10mm W x 15mm L - Alloy - Torque: 20.3 Nm (180 in-lbf) - 2 pcs.
  • Lower Link to Mid Link Pivot (Lower Shock Eye) Bolt: 8mm W x 53mm L - Alloy - Torque: 22.5 Nm (200 in-lbf) - 1 pcs.
Technical Information
  • Season
    2019
  • Color
    Black
